The numbers still stop people in their tracks. The record-breaking consist comprised 660 fully loaded iron ore wagons, stretching approximately 7.2 kilometers and weighing nearly 70,000 tonnes in total.

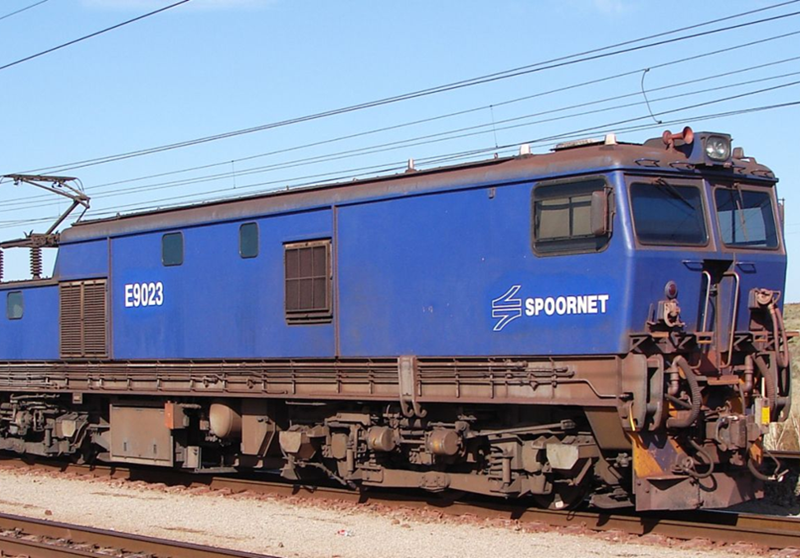

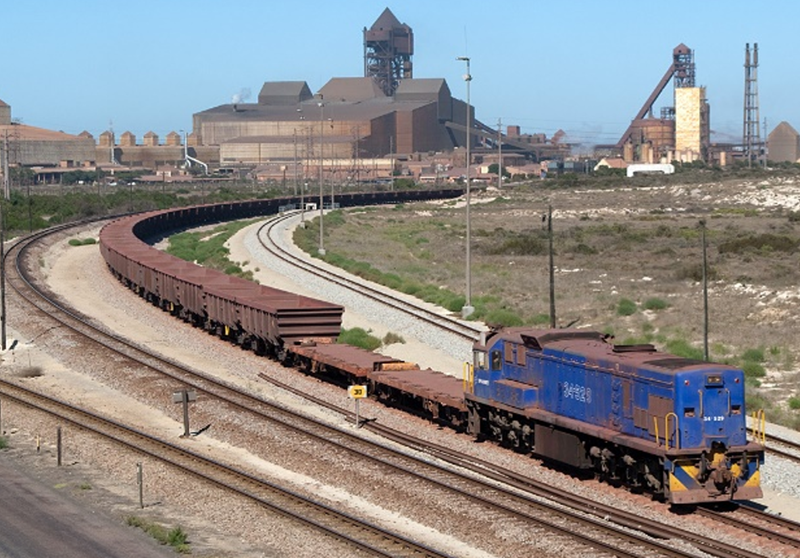

Hauling a load of this scale over the full 861 km route from Sishen in the Northern Cape to Saldanha Bay on the West Coast required nine electric locomotives and seven diesel-electric locomotives — sixteen locomotives in total — positioned at various points throughout the train and controlled in a coordinated manner to distribute pulling and braking forces safely across the entire length of the consist.

The journey itself became part of the legend: departing at 12:45 p.m. on a Saturday, the train arrived at Saldanha Bay at 3:40 p.m. the following afternoon — a journey of just under 27 hours across some of the most demanding heavy-haul terrain in the world.

None of this would have been possible without a railway purpose-engineered for exactly this kind of challenge. The Sishen–Saldanha line was built with continuously welded rail on concrete sleepers and designed from the outset to carry exceptionally heavy axle loads. Long passing loops, carefully managed gradients, and a centralised traffic control system combined to make it possible to move some of the largest freight trains the world has ever seen — and still do, to this day.

It is worth remembering that the record train was never part of day-to-day operations — it was organised as a special engineering and logistics test, deliberately pushing the corridor to its limits. In doing so, it showcased South Africa’s expertise in heavy-haul rail transport and put the country’s freight railway infrastructure on the world stage, decades before “heavy-haul superpower” became a phrase anyone used to describe South African rail.

A World-Class Heavy-Haul Operation

At the heart of South Africa’s export logistics sits the Iron Ore Business Unit, a dedicated heavy-haul railway running from Sishen to Saldanha Bay on a single line supported by 19 crossing loops — a feat of scheduling and engineering that keeps ore and manganese moving continuously in both directions. Few railways anywhere in the world run trains this long, this heavy, or this reliably.

The BU forms a seamless “pit-to-port” chain, linking the mineral wealth of Sishen and the surrounding Northern Cape deposits directly to the ships berthing at Saldanha. It is this end-to-end integration — mine, rail and port working as one system — that has kept South Africa firmly positioned as one of the world’s leading suppliers of iron ore to the global steel industry.

From 210 Wagons to 348: A Story of Continuous Improvement

When the line was commissioned in 1976, it ran modest 210-wagon trains, each wagon carrying an 80-tonne payload. It was already impressive for its time — but it was only the beginning, as the record-breaking 660-wagon run of 1989 would soon prove. Over the following decades, every part of the system was reimagined: wagon design, locomotive power, braking technology, and control systems all evolved in step, allowing the railway to carry more with every single trip.

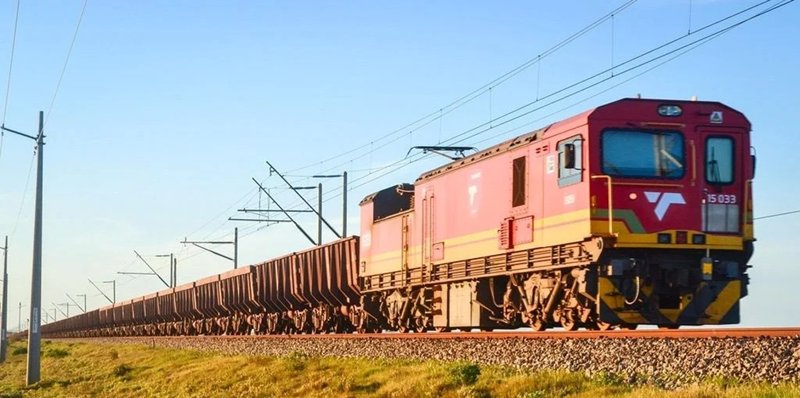

The next great turning point in everyday operations came in 2007, when Transnet introduced 342-wagon trains powered by Radio Distributed Power (RDP) locomotives positioned throughout the train rather than only at the front, echoing the same distributed-power principle that had made the 1989 record run possible. Then, in August 2019, the standard train grew again, to 348 wagons, each train now moving approximately 34,800 tonnes of iron ore in a single run. Together, these advances more than doubled the everyday carrying capacity of a typical train compared with the original 1976 operation — without laying a single extra kilometer of track.

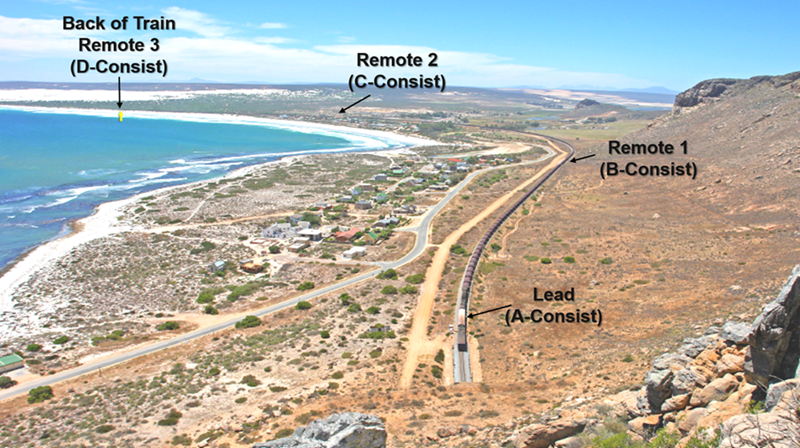

That image tells the story better than any statistic can. A single Ore Line train, fully assembled, can stretch for approximately four kilometers across the landscape — four remotely linked locomotive consists working in perfect synchrony to keep the load moving smoothly over gradients and curves that would defeat a conventional train. It is heavy-haul rail engineering at its most spectacular, and it happens here, on South African soil, several times a day — a direct descendant of the record-setting spirit of 1989.

It is a story with a clear thread running through it: from the 210-wagon trains of 1976 to the astonishing 660-wagon record run of 1989, to the 348-wagon giants running every day today, this corridor has never stopped finding ways to move more, more safely, and more efficiently.

The Wagons That Carry the Journey

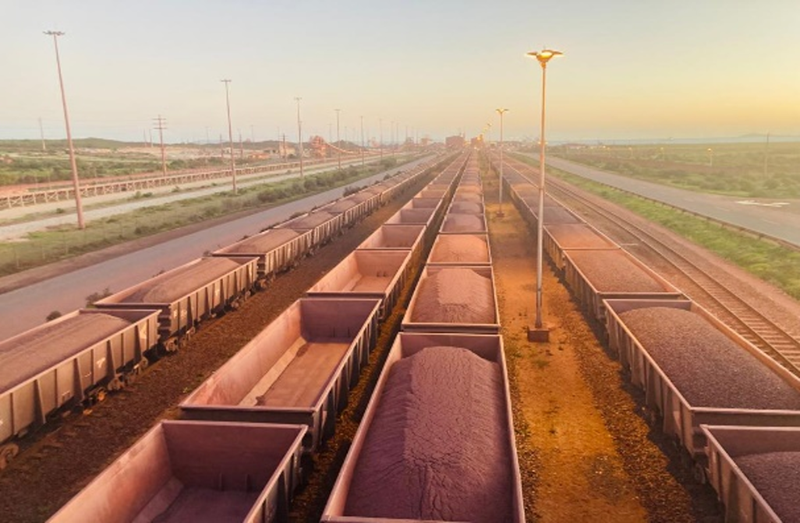

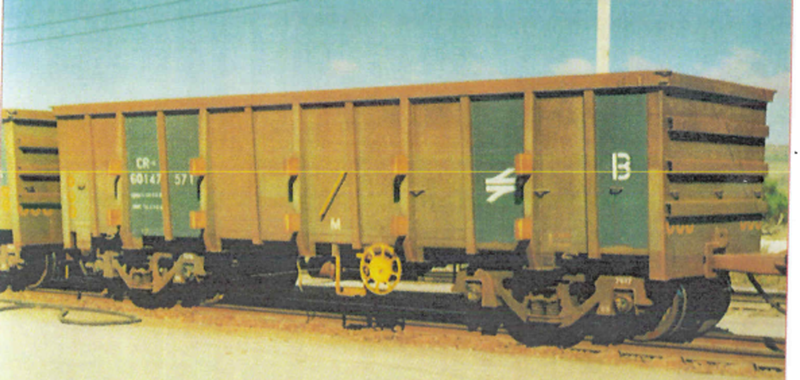

None of this distance, tonnage or record-breaking history would mean anything without the workhorses that actually carry the ore: the wagons themselves. A total of 2250 CR5 wagons having an 85t payload with a design axle loading of 26t/axle were utilised to transport iron ore on the Iron Ore line.

These wagons were placed in service in 1978 to replace earlier types. Each CR5 has a capacity of 33.30 cubic meters and carries a nominal load of 85 tonnes of iron ore, with a tare weight of 18.50 tonnes. Every wagon set is 21 meters long, three meters wide over the body and 2.417 meters high from the rail.

Today, the Iron Ore BU operates a combined fleet of 6,019 CR13 and CR14 wagons, forming the backbone of one of the world's most efficient heavy-haul railway systems. The wagons operate in permanently paired A and B sets, connected by solid drawbars. Each paired set is fitted with a rotating coupler at one end and a non-rotating coupler at the other. This specialised configuration enables two wagons to be rotated simultaneously during unloading at a tandem wagon tippler, eliminating the need to separate wagon pairs and significantly improving terminal efficiency.

While record-breaking train lengths often capture public attention, every wagon within the train is a highly specialised engineering asset. Each of the 348 wagons that make up a modern iron ore train, and each of the 660 wagons that formed the world-record train in 1989, is purpose-built for heavy-haul operations, semi-permanently coupled to its partner wagon and precisely configured to interface seamlessly with the tandem tippler system at the export terminal. This integrated wagon design remains a critical enabler of the operation's world-class throughput and operational efficiency.

Manganese Joins the Story

The Ore Line’s growth story is not only about iron ore. Manganese export trains were introduced in August 2014 with 160 wagons, growing to 208 wagons by March 2015 and 312 wagons by October 2016. In December 2018, the corridor reached a landmark achievement: the 375-wagon manganese train, establishing one of the world’s longest production heavy-haul train operations. Since then, productivity has climbed further still, with wagon payloads increased from 63 to 67 tonnes — proof that even a mature, world-leading system still has room to improve.

A National Asset, Not Just a Railway

Mr. Sibuthe Mdala, the General Manager of the Iron Ore Business Unit has emphasized that the corridor’s significance extends well beyond rail operations. It is a critical enabler of South Africa’s export economy, supporting the sustainability and global competitiveness of the mining sector while sustaining employment and economic activity across the wider logistics value chain. Through close collaboration with Transnet Rail Infrastructure Manager, Transnet Engineering and Transnet Port Terminals, the Business Unit continues to strengthen the reliability and competitiveness of a corridor that quite literally keeps South Africa’s mineral wealth moving to the world.
